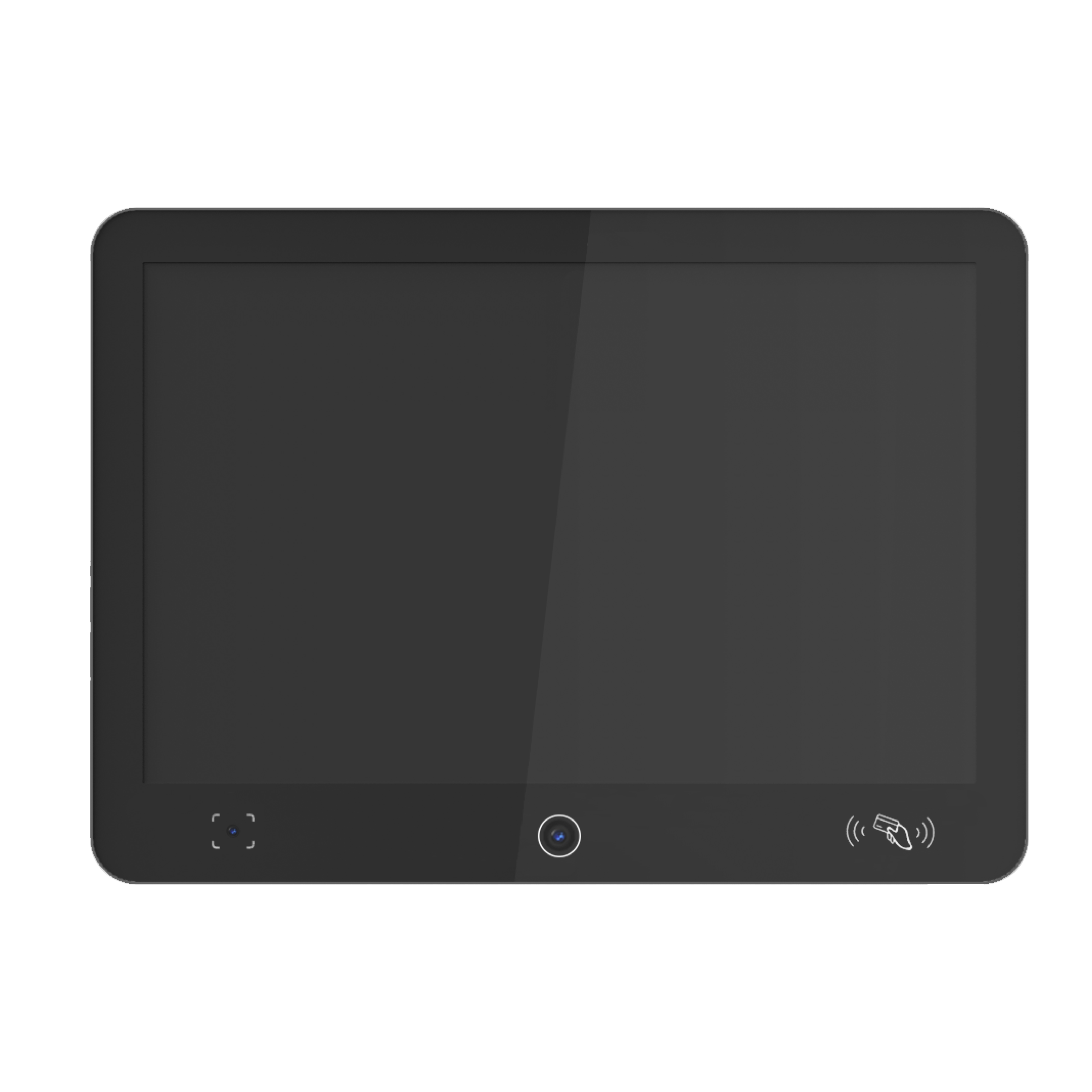

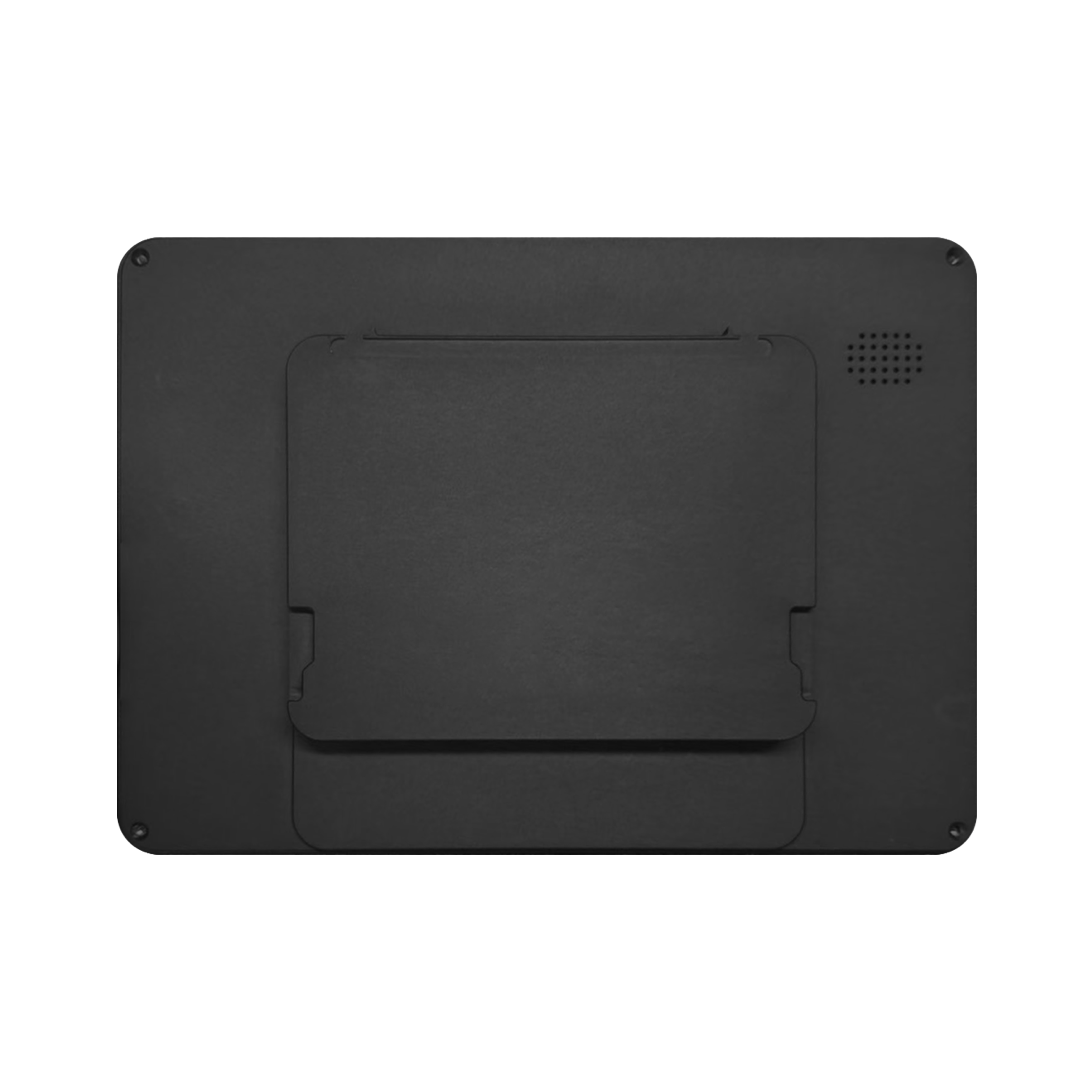

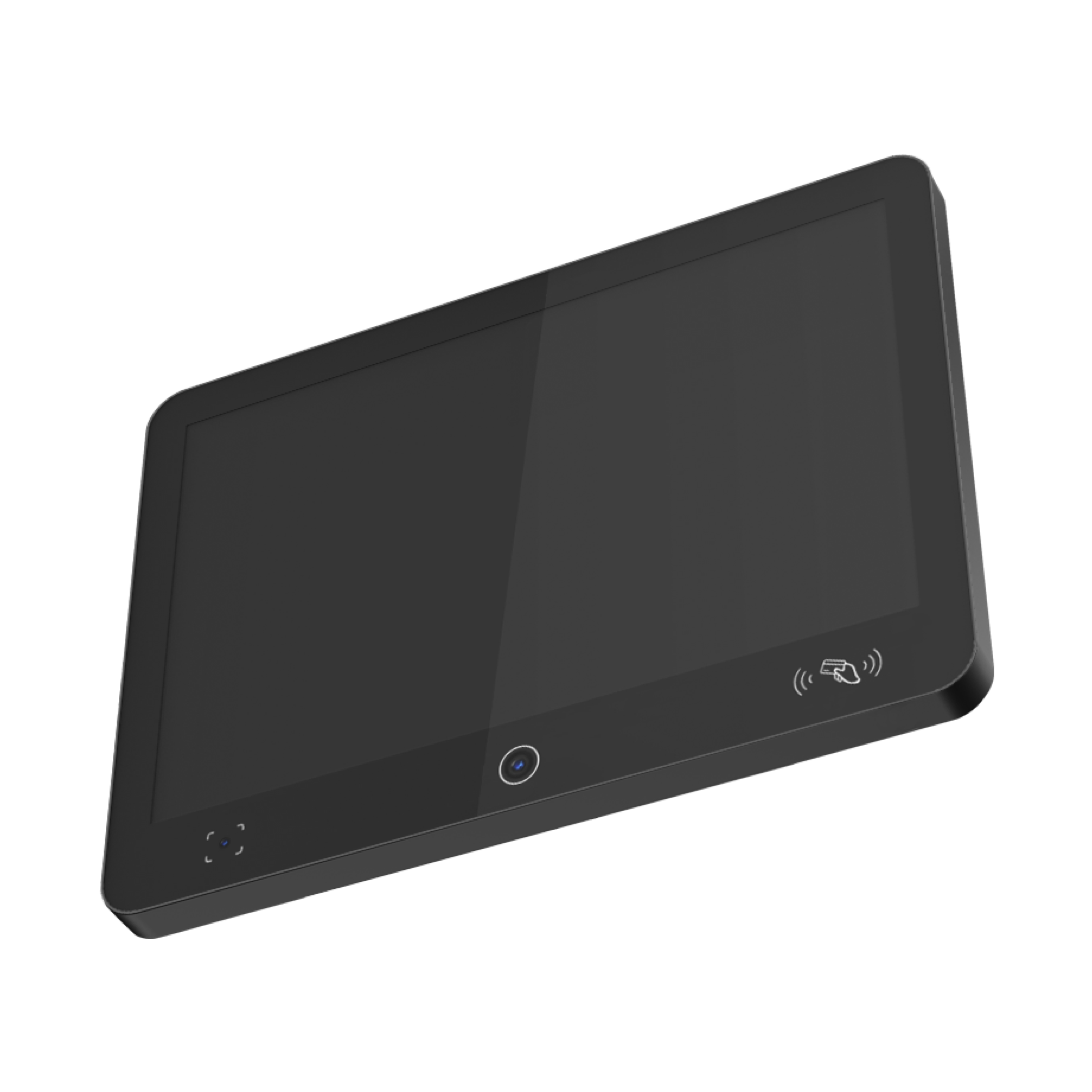

Conference Tablet
Conference Tablet
LSC1400

Android13 operating system

Compatible with face recognition, card swiping, and QR code scanning

32GB large-capacity memory

10-inch Mor氏 seven-level HD screen

G+G capacitive touch screen

Passed 3C, SRRC, CTA certification

Product Advantages

Technical Parameters

Dimensions (L × W × H)244.4×176×24.6mm
PowerDC input, 12V3A
Rated Power15W, Maximum not exceeding 30W
Working EnvironmentMaximum Temperature: -10°C to +50°C, Humidity: 10% to 90%
Recommended Temperature: 0°C to +40°C, Humidity: 10% to 80%
Screen Display10.1 inches, Brightness 300 cd/m², IPS LCD (800×1280)
Touch ScreenCapacitive touch screen, multi-point touch G+G
CPU and Main Frequency4-core 2.0GHz Cortex-A55 CPU, RK3568 platform
Memory2G LPDDR3 RAM
FLASH32GB eMMC
Operating SystemAndroid 13
Built-in SpeakerSingle-channel Maximum 2W/8R
RTC Clock BatteryYes, button battery life > 2 years
Network InterfaceEthernet Port: 10/100Mbps Base-T Auto-adaptive, RJ45;
WIFI2.4/5G, 802.11a/b/g/n/ac;
BluetoothBT4.2(BR/EDR+BLE);
RGB Camera ModuleActive pixel array: 2 million pixels; Optical format: 1/2.9inch; FOV: D70° H63° V38°
Dynamic range: 105dB HDR mode/81dB linear mode; Max SNR: 38dB
Working environment: -10~60°C; Face recognition distance: 30-100cm; Face recognition speed: Fastest 0.2 seconds, average 0.5s
Non-contact Card ReadingReading Distance: >1cm; Communication Frequency: 13.56MHz, Communication Protocol ISO/IEC 14443A/B, ISO15693.
Supports Mifare S50/70, UltraLight, PlusCPU, CPU cards;
Scanning PortRecognition Distance: 30~150mm
Supported Formats:
2D Code Standards: QR Code, PDF417, DataMatrix (ECC200), etc.;
1D Code Standards: EAN13, EAN8, UPC-A, UPC-E0, UPC-E1, Code128, Code39, Code93, CodaBar, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, MSI Plessey, RSS-14, Limited RSS, Extended RSS, etc.;
External Wiring InterfaceUSB interface: 1×USB2.0 TYPE-A;
Network interface: 1×RJ45;
RSS32 interface: 3.81mm terminal head
Power interface: 1×DC5521 socket, inner positive outer negative;
Appearance ColorFront and back shell: Dark gray; Display panel: Transparent + Black
Installation MethodWall-mounted installation (standard bracket)
