Electronic Class Plate Terminal
LSC1200
Qualcomm Snapdragon octa-core processor, low energy consumption, high performance
Compatible with face recognition and card swiping functions
Single-camera
Supports Alipay and other third-party algorithms
21-inch Mor氏 seven-level high-strength HD display
G+G capacitive touch screen

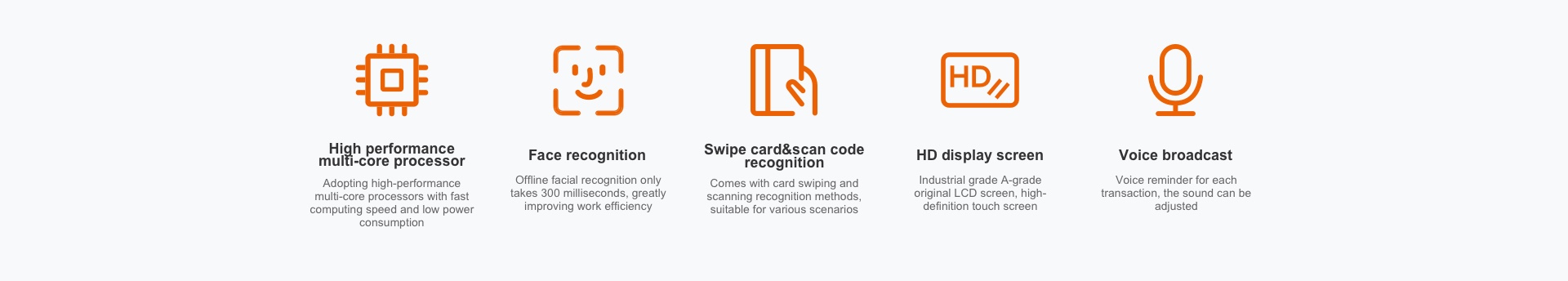

Product Advantages
Technical Parameters
| Dimensions (L × W × H) | 522.6×349.11×34.8mm |
| Power | 12V Maximum 5A; External (12V 5A adapter) |
| Power Consumption | Standby power ≤3W; Working power <20W |
| Working Environment | Working Temperature: -10°C~50°C; Storage Temperature: -20°C~60°C |
| Screen Display | 21.5 inches, Brightness 300cd/m², Resolution: 1920×1080@60fps |
| Touch Screen | Capacitive touch screen, multi-point touch G+G |
| CPU and Main Frequency | 8-core 1.8GHz A53, Qualcomm Snapdragon 450 processor |
| Memory | 2G LPDDR3 RAM |
| FLASH | 16GB eMMC |
| Operating System | Android 7.1.2 |
| Built-in Speaker | 2×2W/8Ω |
| Cellular Network Mode (Optional) | LTE-FDD: B1/B3/B5/B8; LTE-TDD: B38/B39/B40/B41 |
| Camera Parameters | 2M pixels; Chip size: 1/2.7Inch; Pixel size: 3.0um×3.0um; Image resolution: 1920×1080@30fps Field of View: DFOV=73°; Recognition Range: 20cm~200cm HDR: Supported; Data Format: RGB/RAW; Data Transmission: MIPI Power Supply Method: AVDD: 2.8V; DVDD: 1.5V; DOVDD: 1.8V Working Temperature: -10°C~60°C; Application Scenario: Indoor, semi-outdoor |
| Non-contact Card Reading | Reading Distance 0~50mm (varies for different cards); Read/Write Time <0.1 seconds; Communication Frequency 13.56MHz±7KHz; UART Data Transmission Rate: 9600bit/s; Communication Protocol: ISO/IEC 14443A/B |
| External Wiring Interface | USB: USB2.0 Type-A 2 Network Port: RJ45, 10/100M Auto-adaptive Network Port Power Supply: DC5521 Interface, 12VDC Input Card Dispenser: One group, including NO/NC/COM, door opening button, door magnetic state |
| Installation Method | Wall-mounted installation |
