Family Video Phone
Family Video Phone
LSV3000

Qualcomm Snapdragon octa-core processor, low power consumption, high performance

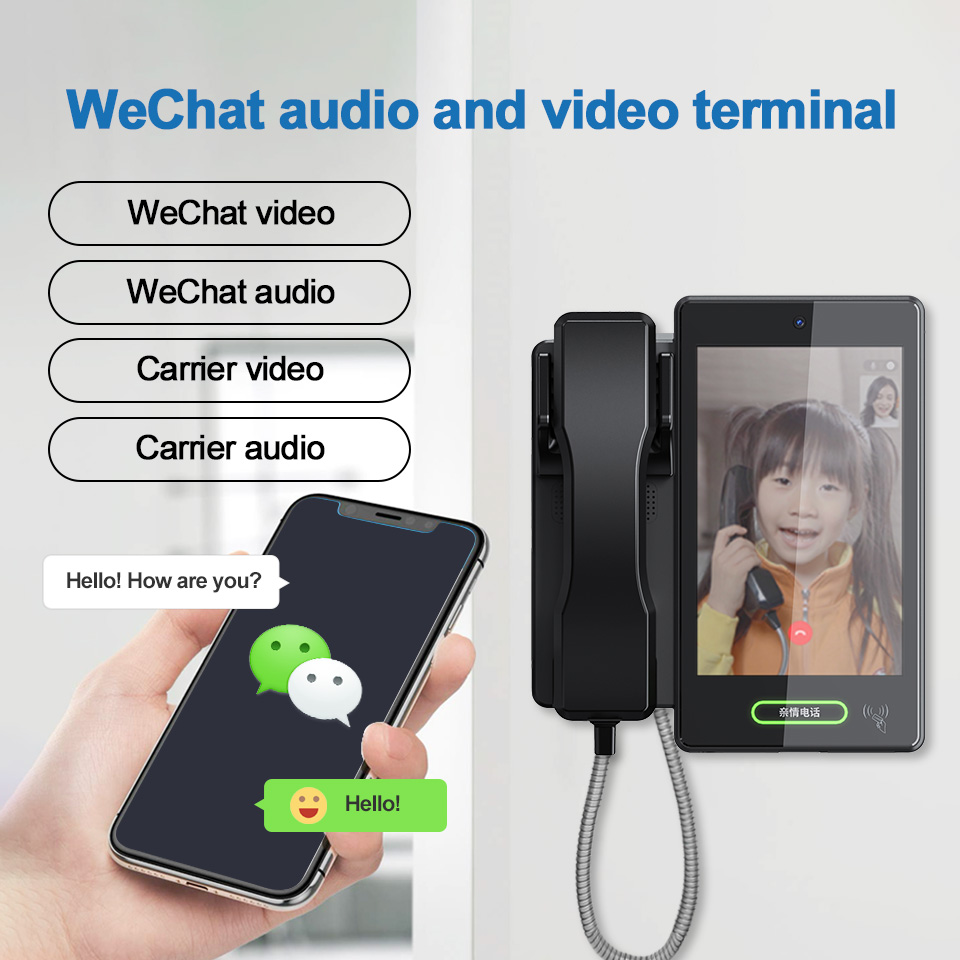

WeChat IOT official designated machine

Compatible with face recognition and card swiping capabilities

Supports Ethernet, Wi-Fi, and full-network 4G

10.1-inch莫氏 glass HD display screen

Single-directional noise reduction microphone

Capacitive touch screen, multi-point touch G+G

Passed 3C, SRRC, CTA certification

Product Advantages

Technical Parameters

Dimensions (L × W × H)295×236×36mm (excluding microphone stand, microphone, and microphone cable)
Power Input VoltageVoltage Input: 12VDC, Maximum Current 2.5A
Rated PowerStandby Power ≤3W, Working Power <20W
Working EnvironmentIndoor, semi-outdoor; Operating Temperature: -10°C~50°C; Storage Temperature: -20°C~60°C
Screen Display10.1-inch IPS LCD (800×1280), 300cd/m²
Touch ScreenMor氏 seven-level tempered glass; Capacitive touch screen, multi-point touch G+G
CPU and Main Frequency8-core 1.8GHz A53, Qualcomm Snapdragon 450 processor
Memory2G LPDDR3 RAM
FLASH16GB eMMC
Operating SystemAndroid 7.1.2
Built-in Speaker2W/8R
RTC Clock BatteryYes, time保持 after power failure, battery life>2 years
Network MethodSupports LAN network connection, WIFI, 4G network
WIFI2.4/5G, 802.11a/b/g/n/ac
BluetoothBT4.2(BR/EDR+BLE)
Cellular NetworkLTE-FDD: B1/B3/B5/B8
LTE-TDD: B38/B39/B40/B41
Camera ParametersPixel: 2M; Chip Size: 1/2.7Inch; Pixel Size: 3.0um×3.0um; Image Resolution: 1920×1080@30fs; Field of View: DFOV=73°
Recognition Range: 20cm~200cm; HDR: Supported; Data Format: RGBRAW; Data Transmission: MIPI
Power Supply Voltage: AVDD: 2.8V DVDD: 1.5V DOVDD: 1.8V; Operating Temperature: -10°C~60°C; Application Scenario: Indoor, semi-outdoor
External InterfacesNetwork Port: 1, 10/100M Auto-adaptive, RJ45
Pop-out SIM Card Slot: 1
Power Interface: 1, 5.5mm DC jack, positive inside negative outside
Power Adapter12V/2.5A three-core power adapter Wall-mounted backplate
Appearance ColorDark gray aluminum frame, black rear cover, capacitive touch screen black + silver
Installation MethodWall-mounted installation
