Family Video Phone
Family Video Phone
LSV4000

Qualcomm Snapdragon octa-core processor, low power consumption, high performance

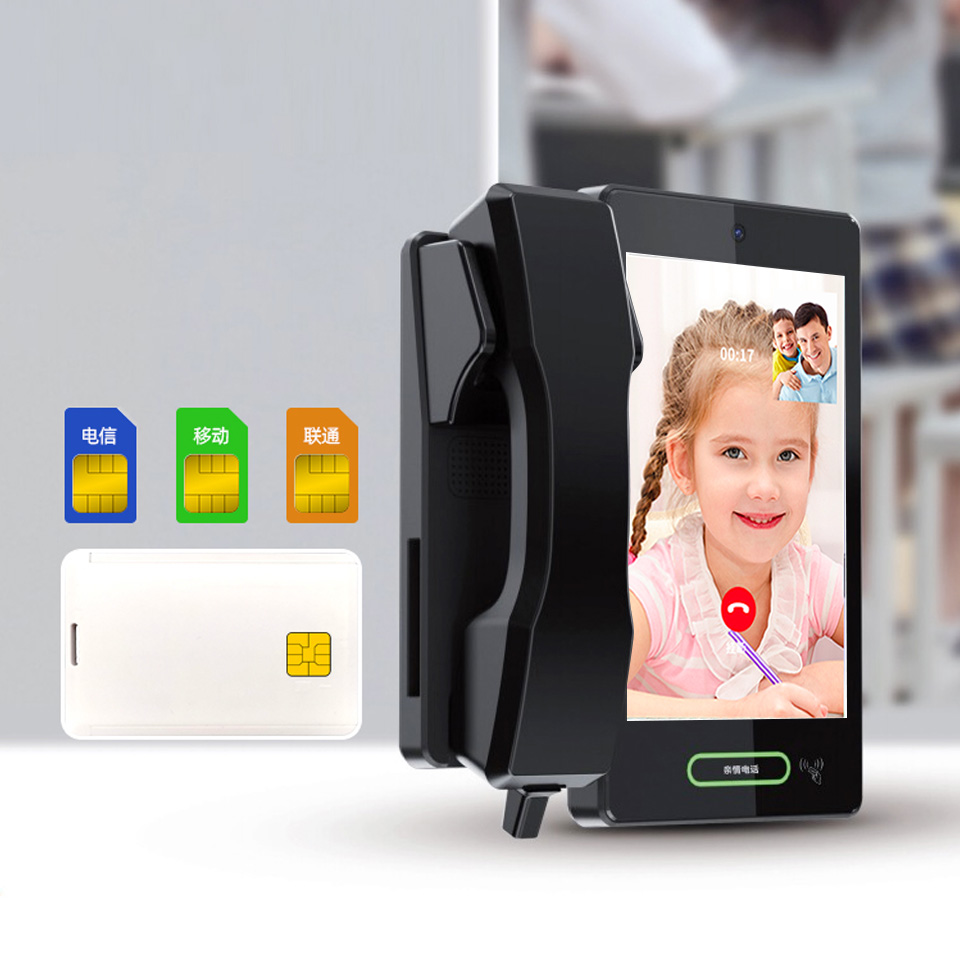

Hot-swappable operator SIM card

Compatible with face recognition and card swiping capabilities

Supports Ethernet, Wi-Fi, and full-network 4G

8-inch莫氏玻璃高清显示屏幕

Single-directional noise reduction microphone

Capacitive touch screen, multi-point touch G+G

Passed 3C, SRRC, CTA certification

Product Advantages

Technical Parameters

Dimensions (L × W × H)237×205×31mm (excluding microphone stand, microphone, and microphone cable)
Power Input Voltage, Current, InterfaceVoltage Input: 12VDC, Maximum Current 3A; Interface: DC5521 Socket
Rated PowerStandby Power ≤3W, Working Power <18W
Working EnvironmentIndoor, semi-outdoor; Operating Temperature: -10°C~50°C; Storage Temperature: -20°C~60°C
Screen Display8-inch IPS LCD (800×1280), 250~300cd/m²
Touch ScreenMor氏 seven-level tempered glass; Capacitive touch screen, multi-point touch G+G
CPU and Main Frequency8-core 1.8GHz A53, Qualcomm Snapdragon 450 processor
Memory2G LPDDR3 RAM
FLASH16GB eMMC
Operating SystemAndroid 7.1.2
Built-in Speaker1.5W/8R
RTC Clock BatteryYes, rechargeable battery
Network InterfaceEthernet Port: 10/100Mbps Base-T Auto-adaptive, RJ45
WIFI2.4/5G, 802.11a/b/g/n/ac
BluetoothBT4.2(BR/EDR+BLE)
Cellular NetworkLTE-FDD: B1/B3/B5/B8
LTE-TDD: B38/B39/B40/B41
Camera ParametersPixel: 2M; Chip Size: 1/2.7Inch; Pixel Size: 3.0um×3.0um; Image Resolution: 1920×1080@30fs; Field of View: DFOV=73°
Recognition Range: 20cm~200cm; HDR: Supported; Data Format: RGBRAW; Data Transmission: MIPI
Power Supply Voltage: AVDD: 2.8V DVDD: 1.5V; DOVDD: 1.8V; Operating Temperature: -10°C~60°C; Application Scenario: Indoor, semi-outdoor
Non-contact Card ReadingReading Distance: Within 3cm (14443A type card) Within 2cm (CPU card); Read/Write Time <0.2 seconds;
Working Frequency: 13.56MHz±7KHz; UART Data Transmission Rate: 9600~230400bit/s; Communication Protocol: ISO/IEC 14443A/B, ISO15693
External InterfacesNetwork Port: 1, 10/100M Auto-adaptive, RJ45
Pop-out SIM Card Slot: 1
Power Interface: DC5521 Plug, Positive Inside Negative Outside;
OtherHDMI Interface: Expand Second Screen, Used for Operation Environment Requiring Other Large Screens, Resolution 1920×1080;
SIM Card: NanoSIM Card Exposed, Built-in One Paste-in IoT Card (IoT Card Optional), Dual-card Dual-standby.
Appearance ColorDark Gray Aluminum Frame, Black Rear Cover, Capacitive Touch Screen Black + Silver (Other Colors Available for Customization)

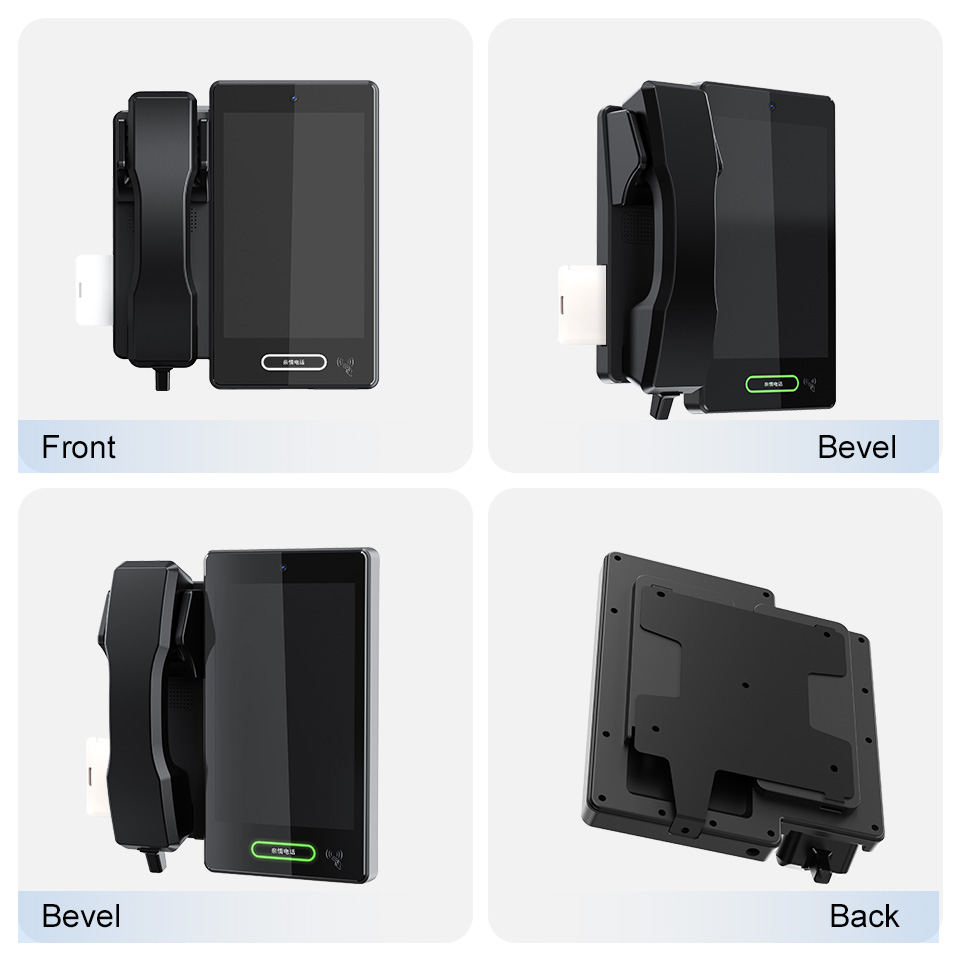

Installation MethodWall-mounted Installation
