LSP985
Palm Vein Recognition Terminal
LESHUN LSP985
Professional palm vein recognition device — The New Benchmark in Biometrics

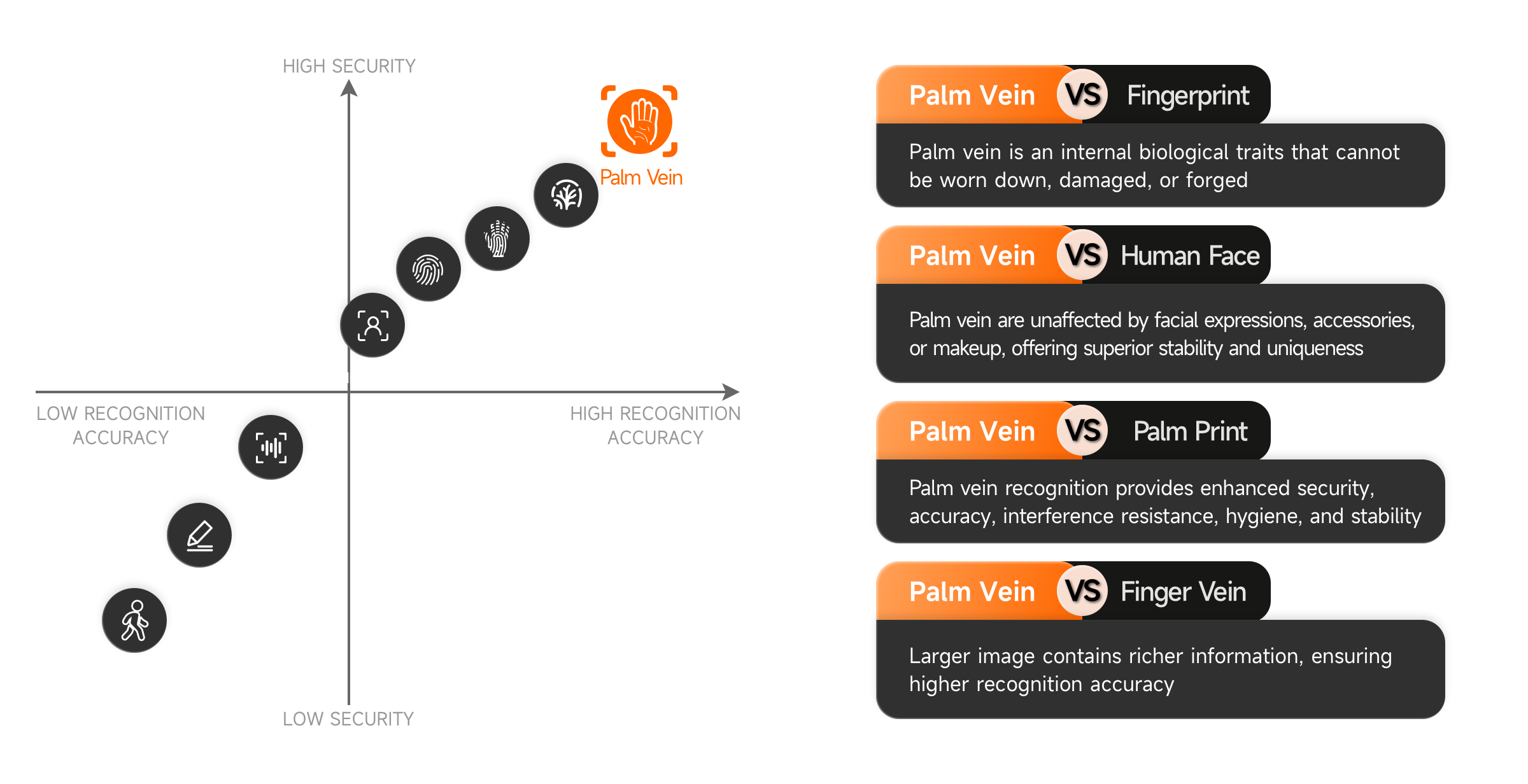

Next-Generation Biometric Technology
Compact And Space-saving Design Adaptable To Multiple Scenarios
A space-efficient, compact body enables easy deployment and low-maintenance operation
172 mm
Length
149 mm
Width
50 mm
Height
Access Control
Connected to access gates, palm-scan entry enables contactless, rapid passage
Attendance Tracking
Millisecond-level recognition speed, eliminates proxy clock-ins
Offline Payment
No card or phone needed—palm vein identity verification, compatible with POS systems
Other Verification Scenarios
Embedded in beer dispensers, milk machines, and lockers etc. to optimize the user experience for verification and payment
Outstanding Performance Robust Configuration
RK3568 4-core
CPU
2.0GHz
Max Clock Speed
2GB RAM + 32GB ROM
Memory & Storage
High-performance processor paired with 2GB RAM + 32GB ROM, ensuring smooth and high-speed operation
Ethernet + dual-band WiFi
Ethernet + dual-band WiFi
Stable transmission, strong anti-interference capability, fast data transfer, enhanced security, and smoother product performance
LESHUN LSP985 Specification Sheet
LSP985
OS
Android 13
CPU
4-core 2.0GHz Cortex-A55 CPU, RK3568 Platform
Memory
2GB RAM + 32GB ROM
Display
5.5-inch IPS LCD, 720×1280 resolution; Multi-touch capacitive touch screen
Bluetooth
BT4.2(BR/EDR+BLE)
Palm Scan (QR Compatible)
Palm recognition distance：6~15cm
Scanner Module
Recognition distance: 3~12cm; Supports 1D & 2D barcodes
NFC
Card reading distance: >2cm; Supports Mifare S50/70, UltraLight, PlusCPU, CPU Cards, etc.
Wi-Fi
2.4G/5GDual-band, 802.11a/b/g/n/ac
Ethernet
10/100 Mbps base-T auto-negotiation; RJ45 port
Interface
1*USB 2.0 Type-A Port
1*RJ45 Port
1*USB Slave (Programming, HID)
1*Power Port
1*RJ45 Port
1*USB Slave (Programming, HID)
1*Power Port
Power
12VDC/3A
Rated Power
15W, Max 30W
Operating Environment
Max Temp: -10°C～+50°C
Humidity: 10%～90%
Recommended Temp: -10°C～+40°C
Recommended Humidity: 10%～80%
Humidity: 10%～90%
Recommended Temp: -10°C～+40°C
Recommended Humidity: 10%～80%
Size & Weight
172mm*149mm*50mm 2kg
Support & Download
Product Specification
ZIP(1.67MB)
